Common Model Markings
Use these markings when searching for an equivalent part. Match the original capacitor's capacitance, voltage, terminal layout and pin size before ordering.
Compatible equipment and replacement references

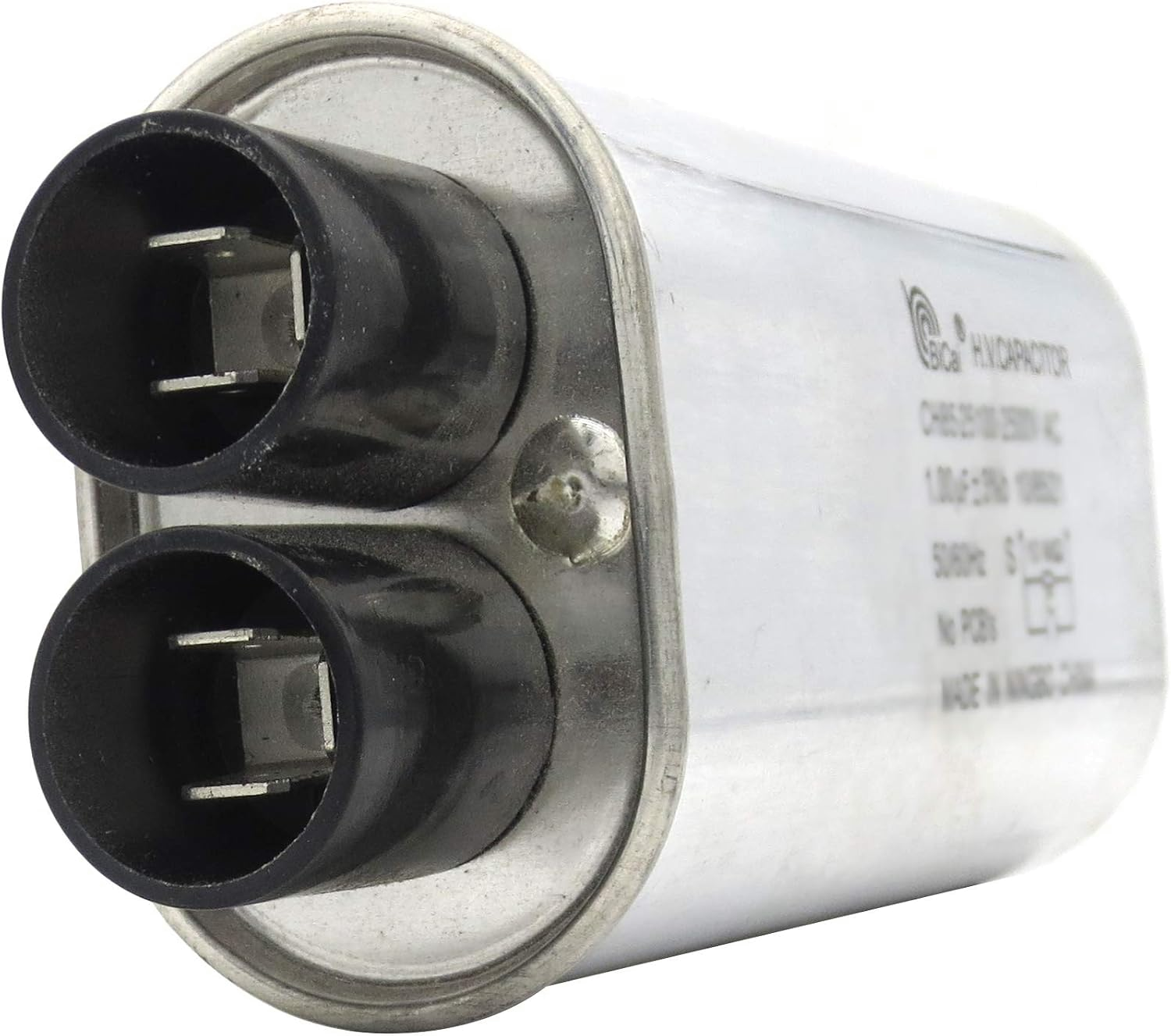

Model markings vary by manufacturer. These are search aliases and are not a guarantee of appliance-brand compatibility.CQC & VDE Universal Household Microwave High Voltage Capacitor 1.20 uF CH85 25120 2500V AC H.V. Capacitor 10/85/21 50/60Hz NO PCB
Production Name: CQC & VDE CH85 Industrial Commercial/Household Microwave High Voltage Capacitor, Module Type: Standard CH85, Withstand Voltage:2500 V 50/60Hz AC, Volume: 1.20 uF, Tolerance:±3%, Connect Pin Size:6x0.7mm/0.236x0.027in(3+3)NO PCB
US
500+ units
Planning a bulk order? Contact customer service for wholesale pricing and availability.
Unable to complete your purchase? Email customer service with the product model and destination country. We will help with availability or an alternative ordering method.
Capacitance1.20 uF
Voltage Rating2500V AC
Terminal Configuration3+3 Terminal
Pin Size6 × 0.7 mm Quick Connect
Internal Resistor10M Megohm
PCB ContentNo PCB
CertificationCQC & VDE
Frequency50/60 Hz
💡 Compatibility Tips
- Start by matching 1.20uF and 2500V AC, then verify frequency, resistor, mounting and physical dimensions against the original part.
- This 3+3 terminal layout may replace 2+2 only when the terminal groups and all other specifications match; leave extra tabs disconnected.
- Important: Check the pin size — this product uses 6 × 0.7 mm (small) quick connect tabs. Make sure this matches your original.
