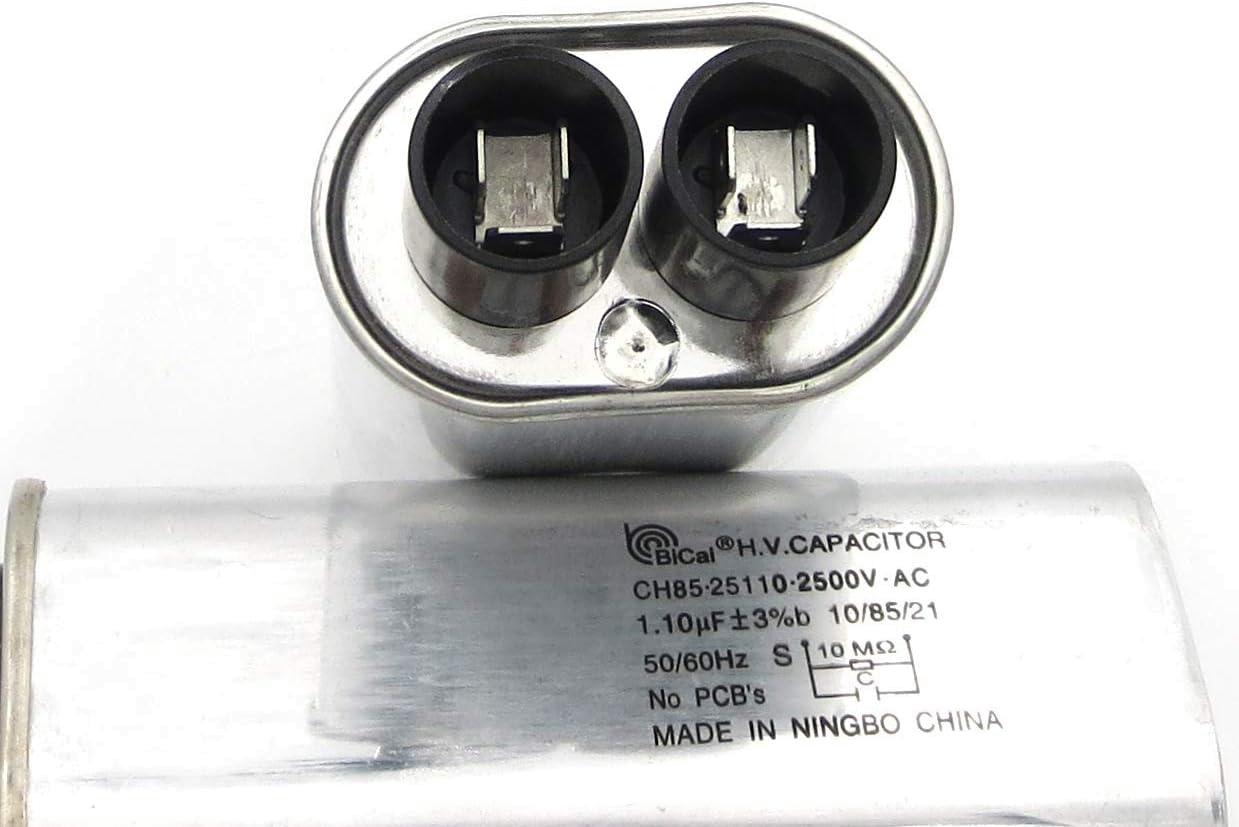

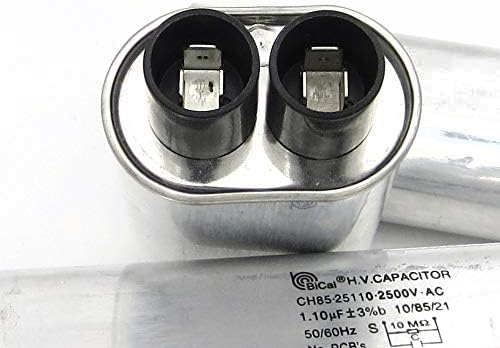

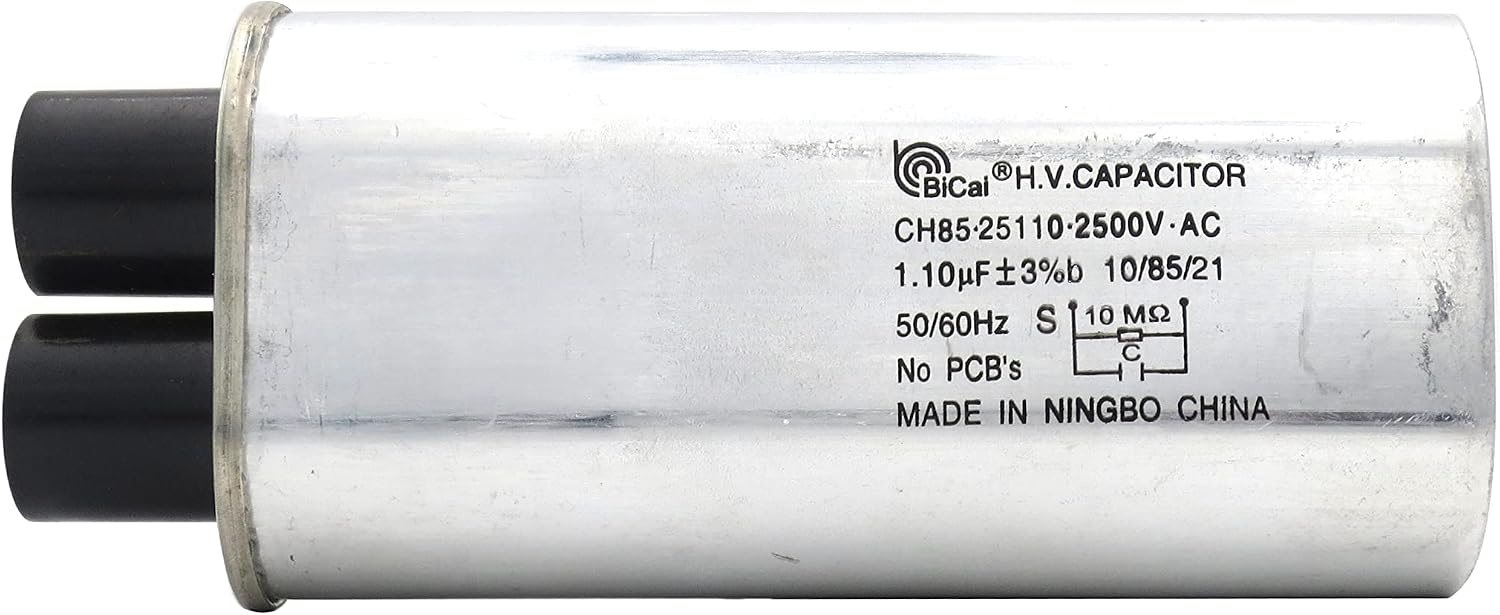

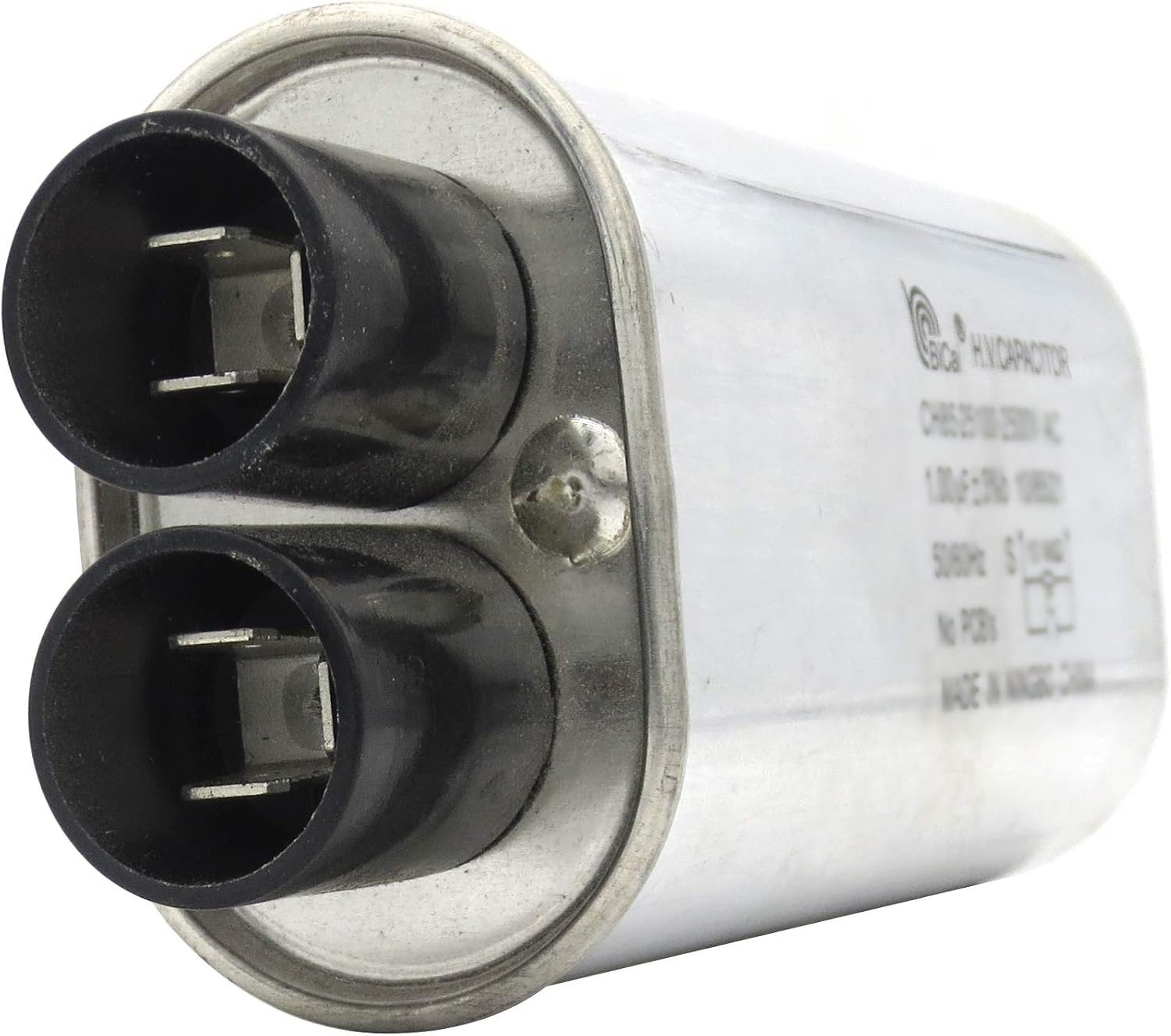

CH85 Microwave Oven High Voltage Capacitor, 1.00 uF MFD, 2500 VAC 50/60 Hz, ±3% Tolerance, 6 x 0.7 mm 3+3 Terminals, Internal 10MΩ Discharge Resistor

Common Model Markings

Use these markings when searching for an equivalent part. Match the original capacitor's capacitance, voltage, terminal layout and pin size before ordering.

CH85-2500-105 CH85-25100 1.00uF 2500VAC 3+3 / 6 × 0.7 mm tab

Compatible equipment and replacement references

Microwave equipment requiring 1.00uF, 2500VAC, 3+3 terminals and 6 × 0.7 mm connections
Model markings vary by manufacturer. These are search aliases and are not a guarantee of appliance-brand compatibility.

CH85 Microwave Oven High Voltage Capacitor, 1.00 uF MFD, 2500 VAC 50/60 Hz, ±3% Tolerance, 6 x 0.7 mm 3+3 Terminals, Internal 10MΩ Discharge Resistor

Core specifications: CH85 standard high-voltage capacitor for microwave oven repair

US Buy Now on Amazon USOpen this product on amazon.com
500+ units

Planning a bulk order? Contact customer service for wholesale pricing and availability.

Unable to complete your purchase? Email customer service with the product model and destination country. We will help with availability or an alternative ordering method.

Capacitance1.00 uF
Voltage Rating2500V AC
Terminal Configuration3+3 Terminal
Pin Size6 × 0.7 mm Quick Connect
Internal Resistor10M Megohm
PCB ContentNo PCB
Frequency50/60 Hz

💡 Compatibility Tips

  • Start by matching 1.00uF and 2500V AC, then verify frequency, resistor, mounting and physical dimensions against the original part.
  • This 3+3 terminal layout may replace 2+2 only when the terminal groups and all other specifications match; leave extra tabs disconnected.
  • Important: Check the pin size — this product uses 6 × 0.7 mm (small) quick connect tabs. Make sure this matches your original.
